Quick start
Table Lite



ASSEMBLY



ASSEMBLY

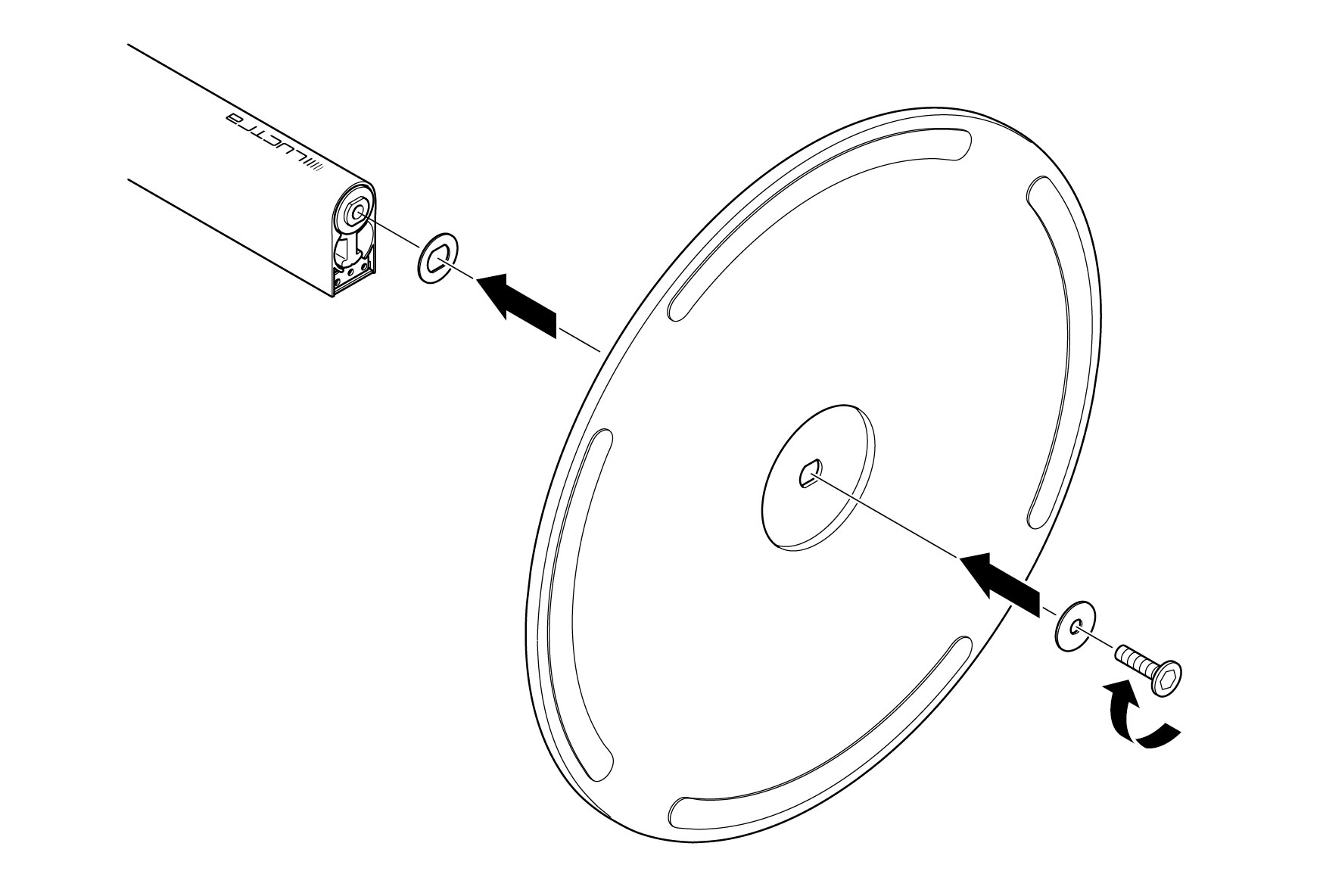

1. Attach the lamp base to the lamp body using the fastening screw.

2. Connect the power adapter to the USB cable that matches your power outlet.

3. Connect the USB-C cable to the lamp.

4. Plug the power adapter into the electrical outlet.

CONTROL

The lamp is controlled by gestures. The sensor that recognizes gestures is located in the lamp head. Gestures are detected within a range of 5 cm to 30 cm below the lamp head.
There are three directions for the gestures:

  •     Move your hand straight toward the lamp post through the detection field, in the direction of the LUCTRA logo.
  •     Move your hand through the detection field from right to left or left to right.
  •     Move your hand within the detection field upward toward the lamp head or downward toward the table surface.



ON/OFF:
HAND MOVEMENT TOWARDS THE LAMP HEAD
To turn the lamp on or off, move your hand in a smooth motion from the front into the sensor's detection field and then back towards the lamp stem.



WARM/COLD LIGHT:
HAND MOVEMENT RIGHT OR LEFT

To make the light warmer (more yellow), move your hand from right to left through the sensor's detection field (5 levels).
To make the light cooler (more blue), move your hand from left to right through the sensor's detection field (5 levels).



DIMMING:
HAND MOVEMENT UP OR DOWN

To decrease the brightness, hold your palm still at medium height in the sensor's detection area for one second and then slowly move it from bottom to top. Keep your hand in the detection area until the brightness decreases.

To increase the brightness, hold your palm still at medium height in the sensor's detection area for one second and then slowly move it from top to bottom. Keep your hand in the detection area until the brightness increases.
